Detect and Track eddies from satellite sea level

Initialisations

Import needed stuff.

import os
import tempfile
import time

import cmocean  # noqa
import matplotlib.pyplot as plt
import xarray as xr

from shoot.eddies.eddies2d import EvolEddies2D
from shoot.eddies.track import track_eddies
from shoot.plot import create_map, pcarr
from shoot.samples import get_sample_file

Read data

root_path = "OBS/SATELLITE/jan2024_ionian_sea_duacs.nc"
path = get_sample_file(root_path)
ds = xr.open_dataset(path)

Detect eddies

Parameters

Window size in km to compute the LNAM and find eddy centers : Lb

window_center = 50  # 50  # 100#50 C'est assez sensible à ce paramètre

Window size in km to fit SSH and make other diagnostics like contours : 10Rd suggested

window_fit = 120  # 100  # 120

Minimal radius of an eddy to retain it

min_radius = 10

Ellipse error

ellipse_error = 0.05

Detection

start = time.time()
eddies = EvolEddies2D.detect_eddies(
    ds,
    window_center,
    window_fit,
    min_radius,
    ssh="adt",
    u="ugos",
    v="vgos",
    ellipse_error=ellipse_error,
    paral=True,
)
end = time.time()
print(f"Temps de calcul pour {len(ds.time)} pas de temps : {end - start:.2f} s")

Temps de calcul pour 31 pas de temps : 153.93 s

Tracking

nbackward = 10  # number of admitted time steps without detection

tracks = track_eddies(eddies, nbackward)  # 10*dt
print(tracks)
tracked_eddies = tracks.track_eddies

<shoot.eddies.track.Tracks object at 0x7026a0fb0250>

# Save track to temporary file
with tempfile.TemporaryDirectory() as tmpdir:
    track_file = os.path.join(tmpdir, 'track_ionian_sea_duacs_jan2024.nc')

    # Save track
    tracks.to_netcdf(track_file)

    # Reconstruct tracks from save file
    track_r = tracks.reconstruct(
        xr.open_dataset(track_file),
        nbackward,
    )

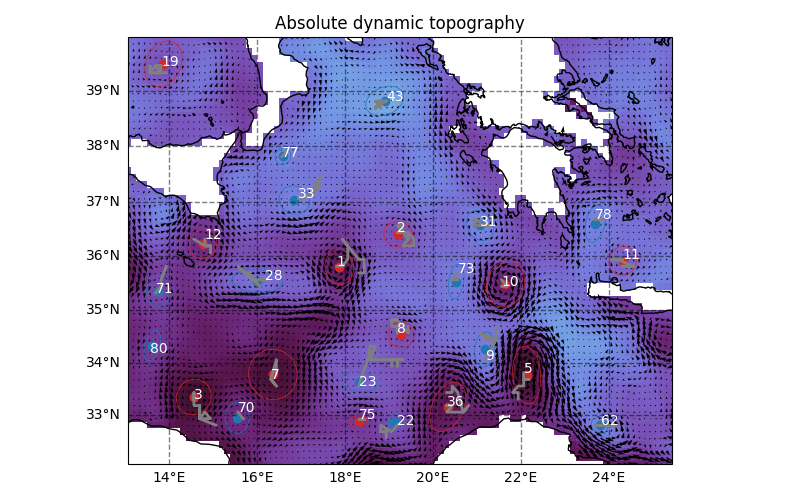

Plots

fig, ax = create_map(ds.longitude, ds.latitude, figsize=(8, 5))
n = 30  # 297
dss = ds.isel(time=n)
dss.adt.plot(ax=ax, transform=pcarr, add_colorbar=False, cmap="cmo.dense")

plt.quiver(
    dss.longitude.values,
    dss.latitude.values,
    dss.ugos.values,
    dss.vgos.values,
    transform=pcarr,
)
for eddy in eddies.eddies[n].eddies:
    eddy.plot(transform=pcarr, lw=1)
    plt.text(eddy.glon, eddy.glat, eddy.track_id, c="w", transform=pcarr)
    track = tracked_eddies[eddy.track_id]
    lon, lat = [], []
    for e in track.eddies:
        lon.append(e.glon)
        lat.append(e.glat)
    plt.plot(lon, lat, transform=pcarr, c="gray", linewidth=2)

plt.title(ds.adt.long_name)
plt.tight_layout()
