Detect CROCO-MED1.8 eddies at different depths and link the detections

In this example, 3D eddies are detected from CROCO model currents interpolated at several depths and collocated at RHO points.

Initialisations

Import needed stuff.

import cmocean  # noqa
import matplotlib.pyplot as plt
import xarray as xr

from shoot.dyn import get_relvort
from shoot.eddies.eddies3d import Eddies3D
from shoot.meta import set_meta_specs
from shoot.plot import create_map, pcarr
from shoot.samples import get_sample_file

xr.set_options(display_style="text")

<xarray.core.options.set_options object at 0x702699232c90>

Load croco-specific naming conventions to find dims, coords and variables

set_meta_specs("croco")

Read data

root_path = "MODELS/CROCO/MED/pelops_3d_interp.nc"
path = get_sample_file(root_path)
ds_3d = xr.open_dataset(path)

Detect eddies

Parameters

Window size in km to compute the LNAM and find eddy centers

window_center = 50  # 50

window_fit = 120

min_radius = 10

eddies3d = Eddies3D.detect_eddies_3d(
    ds_3d.u,
    ds_3d.v,
    window_center,
    window_fit=window_fit,
    min_radius=min_radius,
    paral=True,
)

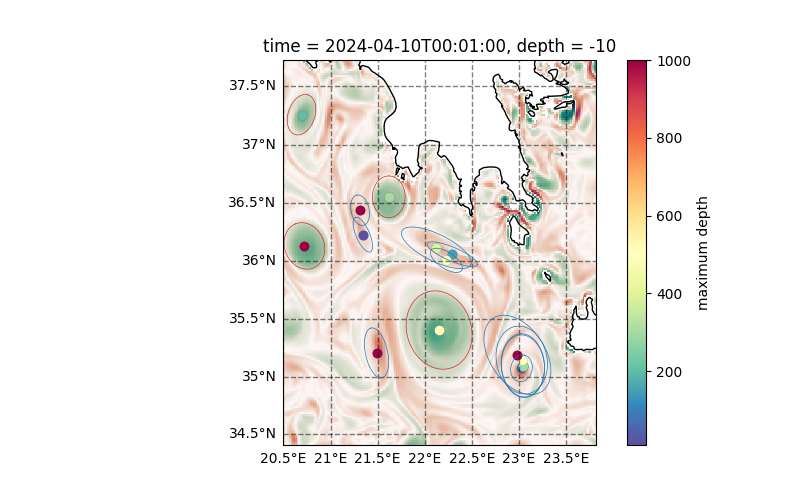

eddies3d.plot2d(depth=10)

# Plots eddies
# -----
#
# We plot eddies with the relative vorticity as background.
#

eddies3d_slice = eddies3d.eddies_byslice

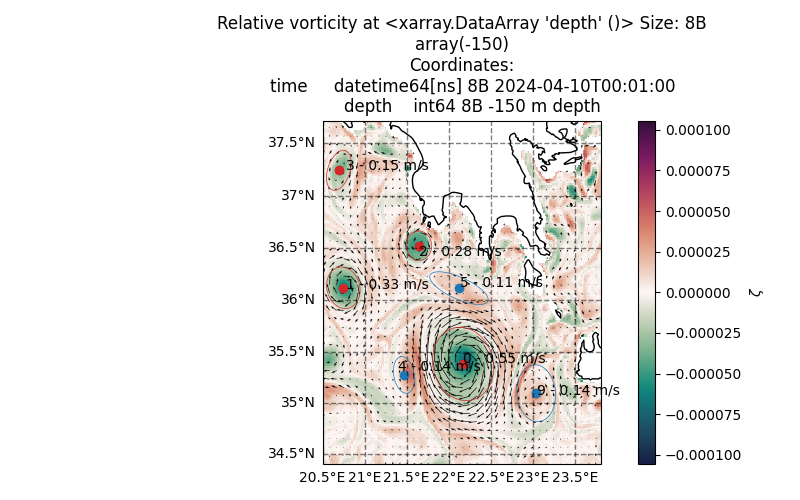

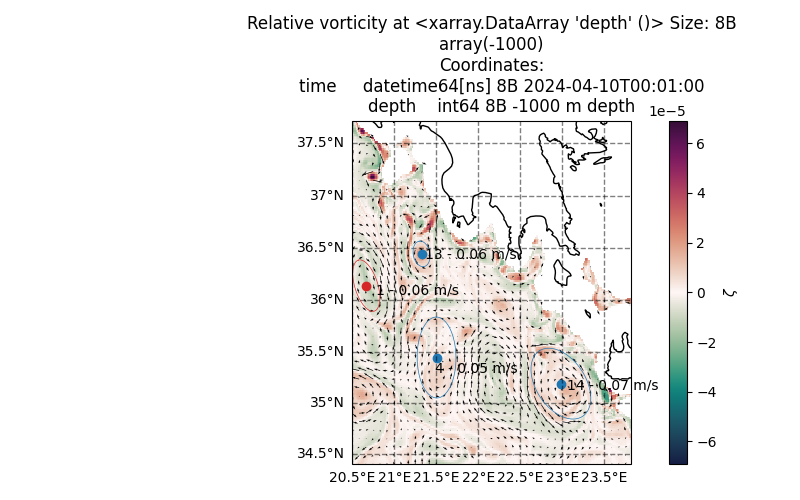

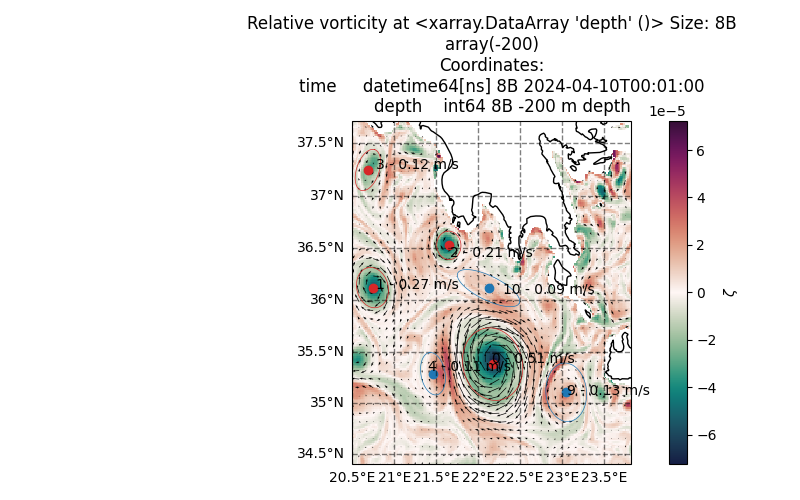

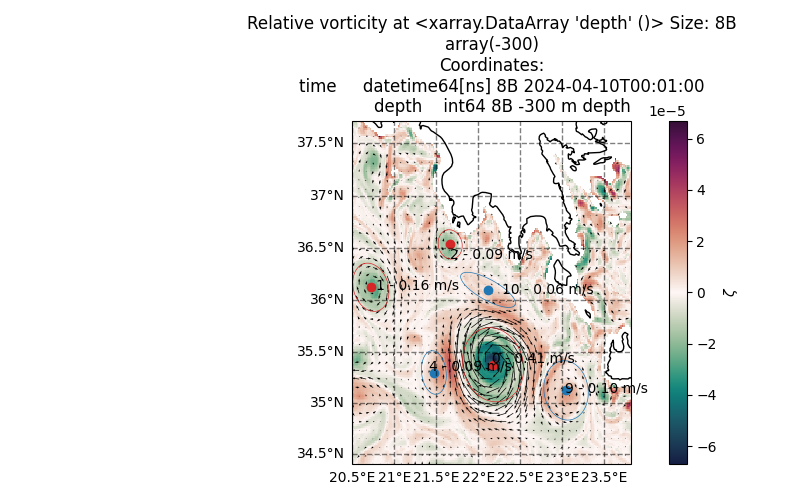

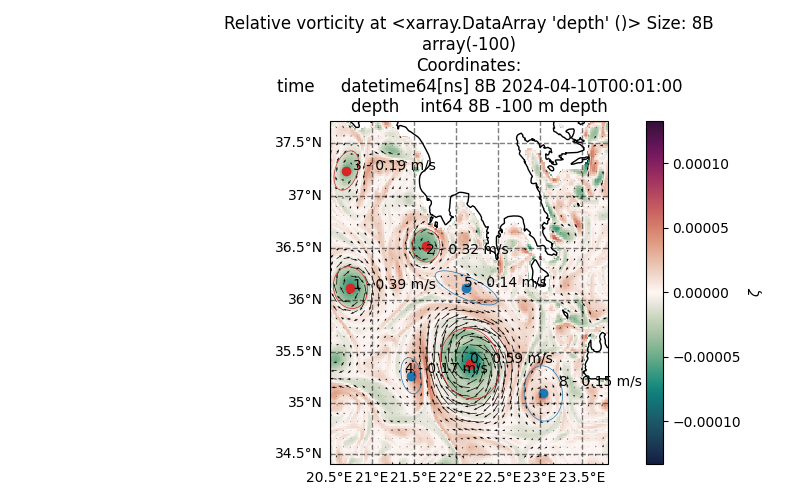

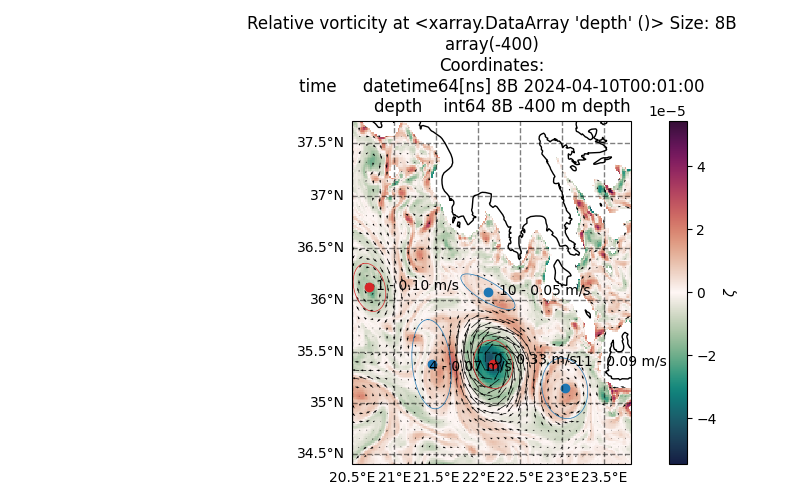

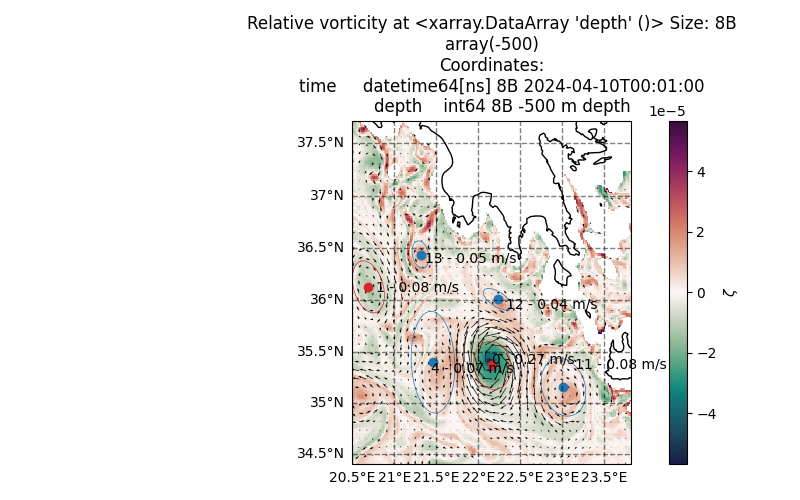

for i in range(len(ds_3d.depth)):
    fig, ax = create_map(
        ds_3d.isel(depth=i).lon_rho,
        ds_3d.isel(depth=i).lat_rho,
        figsize=(8, 5),
    )
    cb = get_relvort(ds_3d.isel(depth=i).u, ds_3d.isel(depth=i).v).plot(
        x="lon_rho",
        y="lat_rho",
        cmap="cmo.curl",
        ax=ax,
        add_colorbar=False,
        transform=pcarr,
    )
    plt.colorbar(cb, label=r"$\zeta$")

    plt.quiver(
        ds_3d.lon_rho[::5, ::5].values,
        ds_3d.lat_rho[::5, ::5].values,
        ds_3d.isel(depth=i).u[::5, ::5].values,
        ds_3d.isel(depth=i).v[::5, ::5].values,
        color="k",
        transform=pcarr,
    )

    for eddy in eddies3d_slice.eddies3d[i].eddies:
        eddy.plot(transform=pcarr, lw=1)
        # plt.text(eddy.glon, eddy.glat, eddy.z_id, transform=pcarr)
        plt.text(
            eddy.glon,
            eddy.glat,
            f"{eddy.z_id} - {eddy.vmax_contour.mean_velocity:.2f} m/s",
            transform=pcarr,
        )

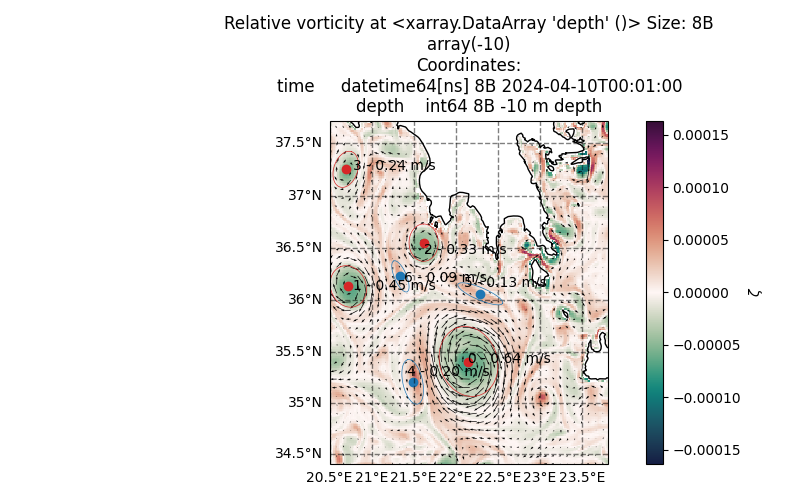

    plt.title(f"Relative vorticity at {ds_3d.isel(depth=i).depth} m depth")
    plt.tight_layout()

•
•
•
•
•
•
•
•
•
