Detect eddies from satellite sea level

Initialisations

# Import needed stuff.
import time

import cmocean  # noqa
import matplotlib.pyplot as plt
import xarray as xr

from shoot.eddies.eddies2d import Eddies2D
from shoot.plot import create_map, pcarr
from shoot.samples import get_sample_file

xr.set_options(display_style="text")

<xarray.core.options.set_options object at 0x702699f69110>

Read data

root_path = "OBS/SATELLITE/jan2024_ionian_sea_duacs.nc"
path = get_sample_file(root_path)
# select one specific date for this example
ds = xr.open_dataset(path).isel(time=0)

Detect eddies

# Parameters
# ~~~~~~~~~~

# Window size in km to compute the LNAM and find eddy centers : Lb
window_center = 50

Window size in km to fit SSH and make other diagnostics like contours : 10Rd suggested

window_fit = 120

Minimal radius of an eddy to retain it Mind that the radius is defined as the radius of the maximum speed contour Preconised around Rossby radius of deformation

min_radius = 10

Ellipse error This is the percentage error from an ellipse. For surface field it is conseil to let 5% to 10%

ellipse_error = 0.05  # percentage error from an ellipse

Detection

performed through Eddies class parallelisation is possible but should be perfomed with caution (refer to the docs)

###

start = time.time()
eddies = Eddies2D.detect_eddies(
    ds.ugos,
    ds.vgos,
    window_center,
    window_fit=window_fit,
    ssh=ds.adt,
    min_radius=min_radius,
    paral=False,
    ellipse_error=ellipse_error,
)
end = time.time()
print("it takes %.1f s" % (end - start))

it takes 11.2 s

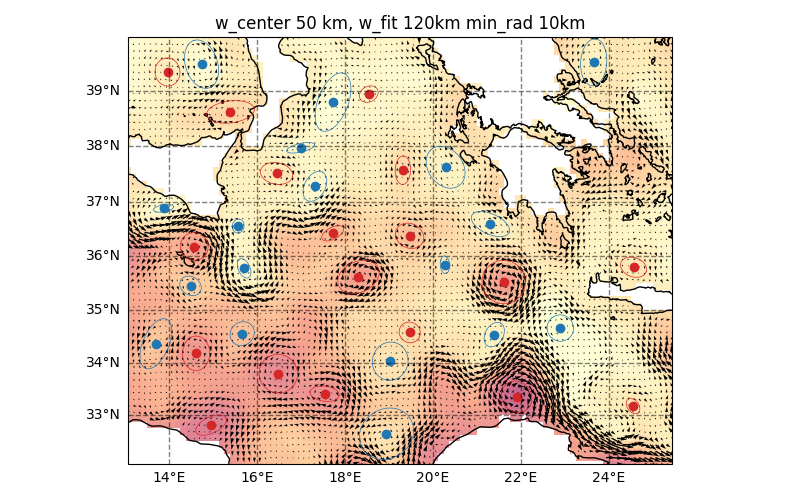

Plots

fig, ax = create_map(ds.longitude, ds.latitude, figsize=(8, 5))
ds.adt.plot(ax=ax, transform=pcarr, add_colorbar=False, cmap="Spectral_r", alpha=0.6)
plt.quiver(
    ds.longitude.values,
    ds.latitude.values,
    ds.ugos.values,
    ds.vgos.values,
    transform=pcarr,
)
for eddy in eddies.eddies:
    # for eddy in eddies_ssh:
    eddy.plot(transform=pcarr, lw=1)
plt.title(f"w_center {window_center} km, w_fit {window_fit}km min_rad {min_radius}km")
plt.tight_layout()
